JET Horizonal Saw 1018 W

Specifications:

Part Number:                                      414473

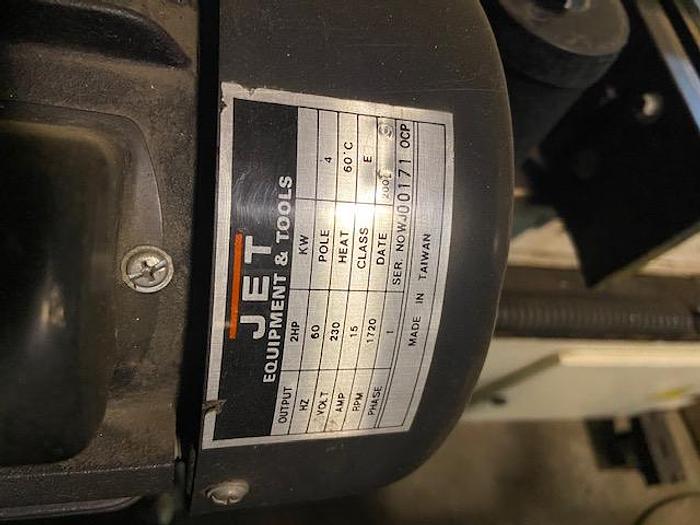

Motor:                                                  2HP, 230V only, 1Ph

Round at 90 Degrees (in.):                 10

Round at 45 Degrees (in.):                 7-1/2

Rectangle at 90 Degrees (in.):           10 x 16 / 6-1/2 x 18

Blade Size (in.):                                   1 x .035 x 130-1/2

Blade Speeds (SFPM):                       82, 132, 210, 330

Bed Height (in.):                                  23-1/2

Blade Length (in.):                              130-1/2

Rectangle at 45 (in.):                          10 x 7-1/2

Base/ 3 Legs Area Required (in.):       69 x 28

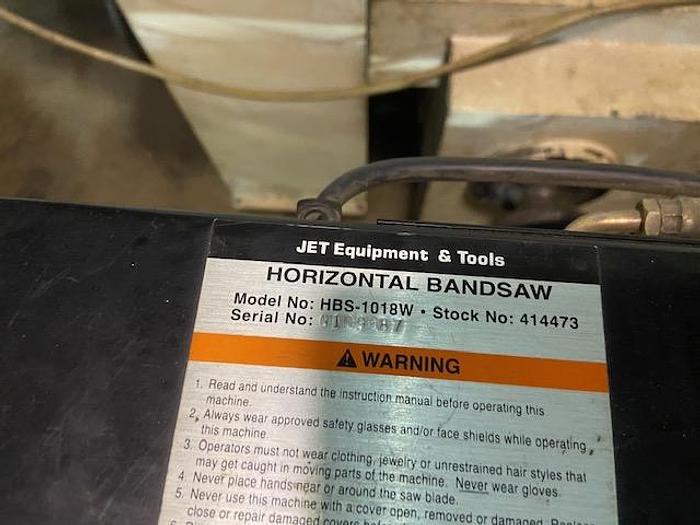

Model Number:                                    HBS-1018W

Brand:                                                   Jet

Overall Dimensions:                              70" x 31" x 44"

Height:                                                   43 inch

Width:                                                    22 inch

Length:                                                  68 inch

Net Weight:                                            801 pounds

Details:

10" HORIZONTAL BANDSAW

Large handwheel and built-in gauge for easy blade tensioning

Coolant is distributed through the blade guides

Blade guides feature parallel double-row ball bearing support

Blade brush is built-in and self-propelled

Quick-positioning vise with fully adjustable jaws swivels to 45?

Removable chip tray for quick clean-up

Blade is fully guarded regardless of blade guide position

Fully adjustable hydraulic downfeed with separate on/off valve

Automatic shut-off after cut

Carbide blade guides with rollers

Coolant system

4/6VT Bi-metal blade

Adjustable material stop
