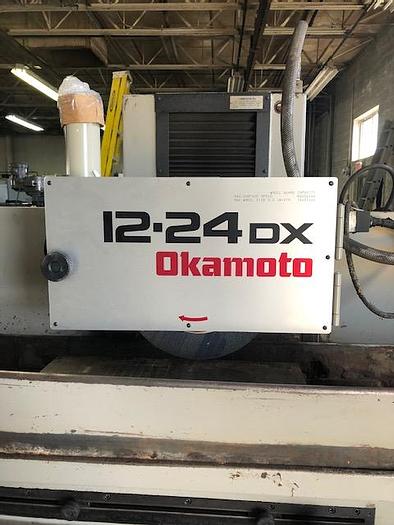

1996 Okomoto DX 1224

: OKAMOTO

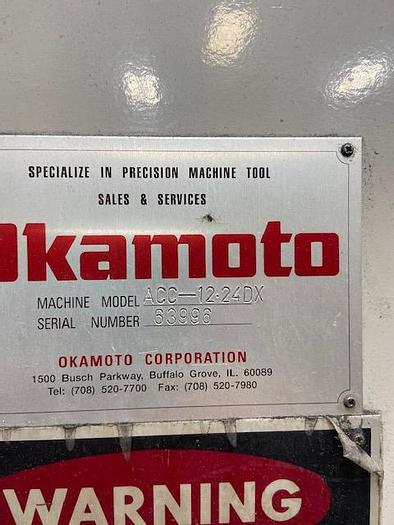

Model: ACC-1224DX

New Date: 1996

s/n 63996

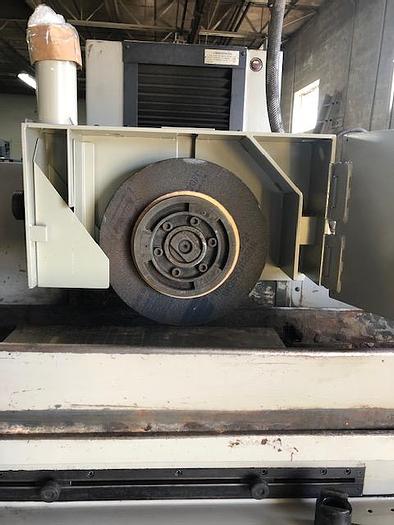

Wheel Size: 12" x 1.5" x 5"

Maximum Height Under 12" Wheel: 13.6"

Table Speed: Up to 82 FPM Infinitely Variable

Maximum Longitudinal Table Travel: 29-1/2"

Auto Cross Feed Increment: .002" to .80"

Auto Continuous Cross Feed: 4 to 40 FPM

Cross Feed, Manual, Hand Feed Per Rev.: .25"

Graduation of Hand Wheel: .001"

Maximum Cross Feed, Manual: 14"

Auto Incremental Down Feed Increments: .00005" to .0015"

Power Rapid Wheel Positioning Rate: 16 IPM

EQUIPPED WITH:

Over the Wheel Hydraulic Dresser

Servo Driven Down Feed

Auto Incremental Down Feed for Both Surface & Plunge Operations

Dual Rate Auto Down Feed with Coarse & Fine Selections

Digital Display for Vertical Axis

Spark Out Passes (0 to 5)

Auto Table Park at Completion of Grind Cycle

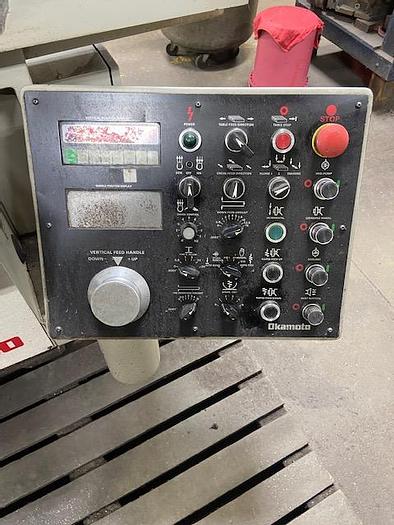

Electronic Hand Wheel for Manual Vertical Movement with Each Graduation

Equivalent to .00001", .0001", .001"

Power Rapid Wheel Positioning

Hydraulic Table Traverse

Automatic Cross Feed

12" x 24" Fine Pole Electromagnetic Chuck

Coolant Tank & Pump with 20" Wide Material Filter System

Tank Size: 32" x 39" x 6" Deep (Approx. 32 Gallon Capacity)

No Piping, Unit is on Wheels

1/8 HP Motor, Wired for 3 Phase, 50/60 Hz, 230/460 Volts

5 HP Spindle Motor, Wired for 3 Phase, 60 Hz, 230-460 Volts

Currently Wired for 460 / 230 3/60 Volts

Overall Machine Size: 108" L-R x 76" F-B x 70" H x 5,280 Lbs.

Coolant Tank & Pump: 32" L-R x 43" F-B x 28" H
