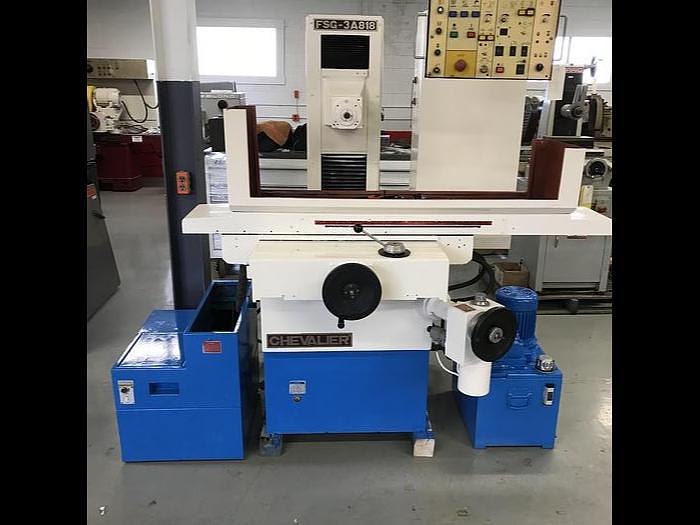

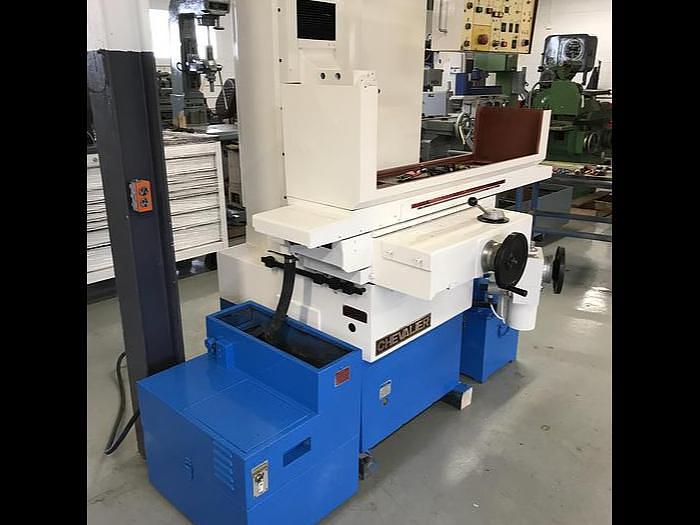

2002 Chevalier Surface Grinder FSG -3A 818

FSG-3A818Table Size8" x 18"Max. Grinding Length18"Max. Grinding Width8"Max. Distance from Table Surface to Spindle Centerline17"Standard Magnetic Chuck Size7 7/8" x 17 3/4"Travel, Hydraulic19 3/4"Max. Travel, Manual21"Table Speed, Variable16~82fpmCrosswise Rapid Travel, Approx.48impCrosswise Auto Increment0.02~0.24"Crosswise Max. Auto Travel9"Crosswise Max. Manual Travel9 1/2"Spindle Drive Speed60Hz/3,450rpm, 50Hz/2,850rpmSpindle Drive Power Rating2HPHydraulic Drive Power Rating1HPCrossfeed Drive Power Rating0.05HPElevating Drive Power Rating0.25HPGrinding Wheel Diameter8"Grinding Wheel Width1/2"Grinding Wheel Bore1 1/4"Floor Space86" x 62" x 76"Net Weight2907lbs.Rated Power5HPPackaging Dimensions73" x 61" x 87"
