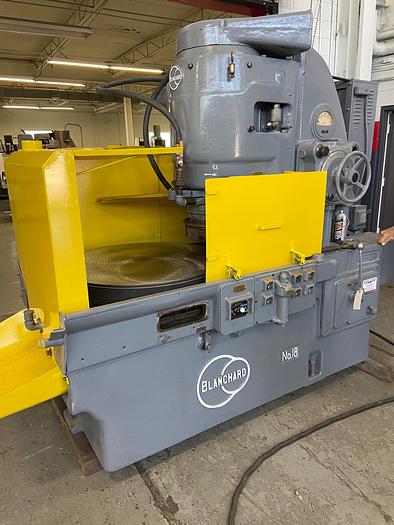

1959 Blanchard 18-36

Blanchard Rotary Grinder , Model 18-36. Reconditioned New set spindle bearing, some electrical, 220/3/60 50 HP,

Spindle & transmission Sounds great . Just a good solid machine.

STANDARD SPECIFICATIONS

36" DIAMETER MAGNETIC CHUCK

22" SEGMENTED WHEEL

NEUTRAL & RECTIFIER

50 HP 220/440 VOLTS

WHEEL DRESSER

LOAD METER

15" VERTICAL UNDER NEW WHEEL

WORKTABLE

BLANCHARD ONE PIECE STEEL MAGNETIC CHUCK, 36" DIAMETER

CHUCK HAS 4" CENTER MAXIMUM WEIGHT OF WORK LOAD - 2,000 LBS.

SPEED

WHEEL: 720 R.P.M. ON 60 CYCLE; CHUCK- 6, 9, 12, 18, 25 AND 33 R.P.M.

AUXILIARY MOTORS: CHUCK ROTATION- 1200 R.P.M.

FEED

VERTICAL DOWN FEED BY HAND OR POWER. POWER FEED VARIABLE FROM .004" TO .080"

PER MINUTE WITH ACCURATE AUTOMATIC STOP. MAXIMUM DOWN FEED BEFORE STOP

OPERATES IS .098". WHEEL HAS RAPID RAISE AND LOWER BY POWER INTERLOCKED WITH

FEED.
